PCE Trailing Commando Socket 63A 3P+N+E 400V IP67 2355-6
Our No: 1393
Manufacturer No: 2355-6
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £33.28 |
| 4 | 7.5% | £32.40 |
| 6 | 10% | £31.53 |
£35.03
£42.04 (inc VAT)
CEE-connector 63A 5p 6h IP67 pilot contact POWER TWIST
CEE-connector 63A 5p 6h IP67 POWER TWIST
housing material: PA6
rated current: 63A
number of poles: 5 (3P+N+PE)
clock-position: 6h
rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: frame terminals with screws
IP protection class: IP66/IP67
Extra: pilot contact with screw terminal (rated current 2A)
Brand:
PCEType:
Trailing SocketAmperage:
63APin Configuration:
3P+N+E (5 Pin)Voltage:
415VColour:
RedIP Rating:
IP67Pin Position (Clock):
6HIncoming Amperage:
63ACurrent Rating Range:
63AConnector Colour:
RedRelated Products
Our No: 1404
PCE Trailing Commando Plug 63A 3P+N+E 400V IP67 035-6
£28.10
Our No: 1378
PCE Panel Mount Appliance Inlet 63A 415V 3P+N+E IP67 635-6
£44.20
Our No: 1383
PCE Panel Mount Angled Appliance Inlet 63A 415V 3P+N+E IP67
£46.05
Our No: 1385

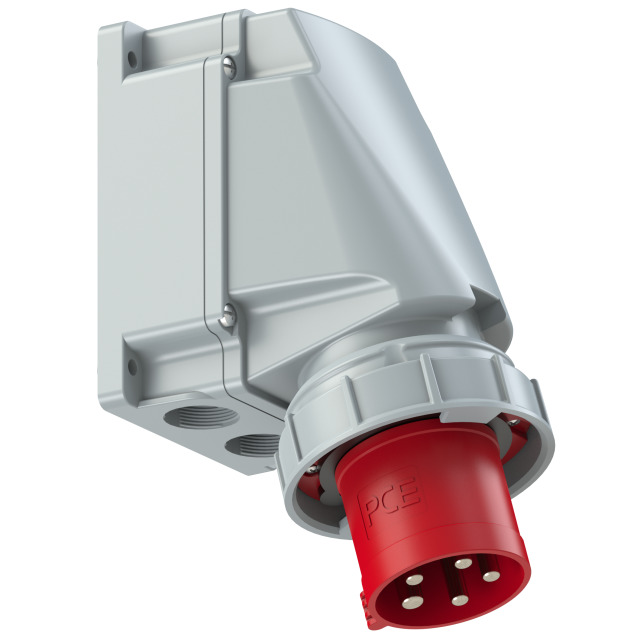

PCE Wall Mount Appliance Inlet 63A 3P+N+E 400V IP67 535-6
