PowerBOX Rubber 16amp 1pH+N+E 230V Cable with In-Line RCBO IP54

PowerBOX Rubber 16amp 1pH+N+E 230V Safety Cable with RCBO IP54

 PowerBOX 16A 1pH+N+PE 230V miniBRICK, (PBF16M1M1ZC-S).
Incoming : 1 CEE-P17 16/3 h6 230V IP67 blue plug with 1m 2.5sqmm. 3 core H07RN-F cable.
Main OUT : 1 RCBO 16A 1pN-C 6.000A Idn 0,03A AC Siemens + 1 hinged window IP54.
Outgoing : 1 CEE-P17 16/3 h6 230V IP67 blue connector with 1m. 2.5sqmm. 3 core H07RN-F cable.

Technical data : IEC 61439-1 & 2 / PSC, Ue : 230V 1pH+N+PE, fn : 50Hz, InA : 16A, Icc : 6.000A, RDF : 100/100, IP : 54, Electrical insulation class : I (first).


CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

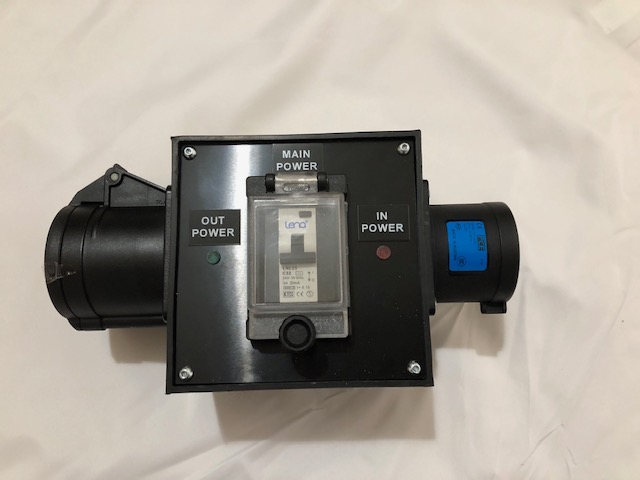

Image used for illustration only.
