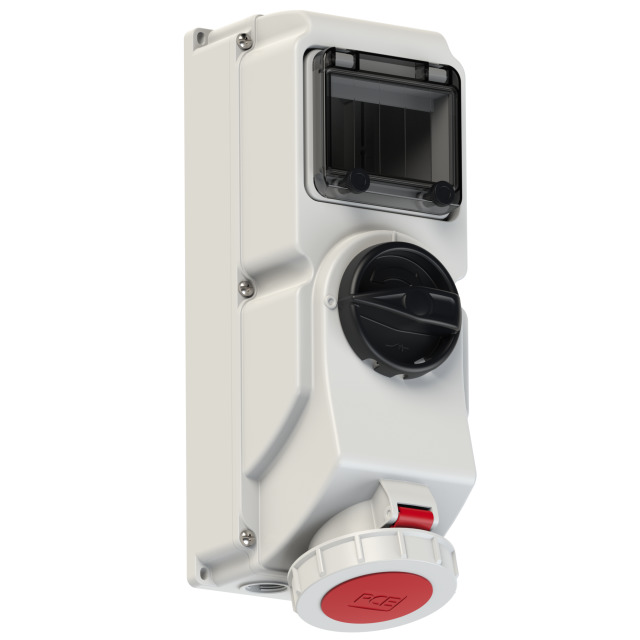

PCE Switched Interlocked Socket 32A 3P+N+E 400V IP67 40A 30mA RCD 76252-6-RCD
Our No: 3193
Manufacturer No: 76252-6-RCD
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £203.14 |
| 5 | 10% | £192.45 |
£213.83
£256.60 (inc VAT)
CEE-switched interlocked socket DIN 32A 5p 6h IP66/IP67 with 30mA RCD
CEE-switched interlocked socket DIN 32A 5p 6h IP66/IP67
housing material: PC/ABS
rated current: 32A
number of poles: 5 (3P+N+PE)
clock-position: 6h
rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
wall mounting, mechanical interlock, hinged window (5 modules), DIN-rail
switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP66/IP67
