DS2 CT / MRI Scanner - New Style without Draw Clamps

Our 250A power distribution panel is manufactured in the UK and is designed to supply power to a range of mobile unit diagnostic modalities such as CT, MRI and PET scanners. This version of the unit is the new style Marechal DS2 socket which does not require draw clamps. The diagram below outlines how this works. If you wish to view the old style click here.

Unlike other products on the market, our DS2 MRI unit is made in a GRP enclosure meaning it will not rust. The enclosure itself is also IP65 rated.

TECHNICAL FEATURES - 250A 3 Phase Unit

• Marechal connection (New Style without Draw Clamps) Power Distribution Panel (Mobile CT/MRI Units)
• Mains incomer bottom entry up to 250A 3 Phase Neutral + Earth
• Manufactured GRP enclosure
• Enclosure Protection IP65
• Enclosure to Suit various Marechal 250 Amp outgoing 5 Pin Female Socket L1, L2, L3, N, E
• Including : Marechal DECONTACTOR DS2 SOCKET - 3924017 - METAL BLUE IP66/67 3P+N+E 250A 440V
• 4 Pole 250 Amp MCCB with Thermal Mag Protection
• Earth Leakage Protection with visual indication for ease of calibration and set up
• Panel Size Approx 747mm x 536mm x 300mm (See diagram below)
• Wall mounting lugs fitted as standard

OPTIONAL EXTRAS

• Options for Ethernet and Phone Sockets available on request
• Class 1 Surge Arrestor to protect equipment from Lighting Strike or Mains Power Surge
• Anti-condensation Heater fitted to enclosure
• LED Beacon supply trip alarm
• Other bespoke options available - Call

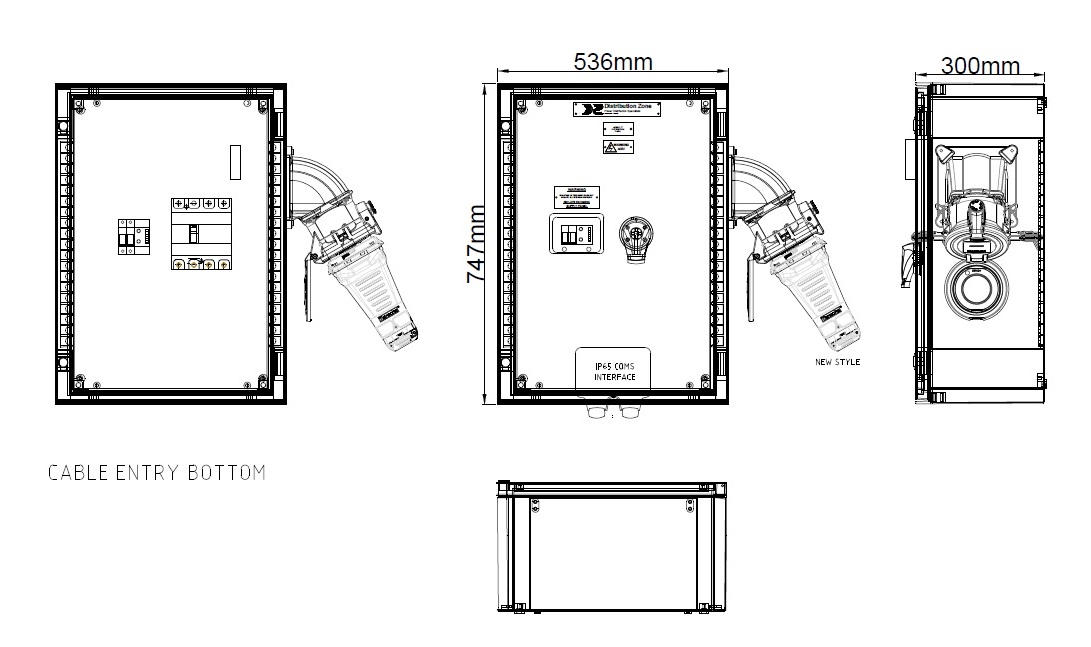

TECHNICAL DRAWING

DOWNLOAD THE DOCUMENTATION

• DS2 - Technical Datasheet
• MARECHAL DS2 DECONTACTOR RANGE.pdf
