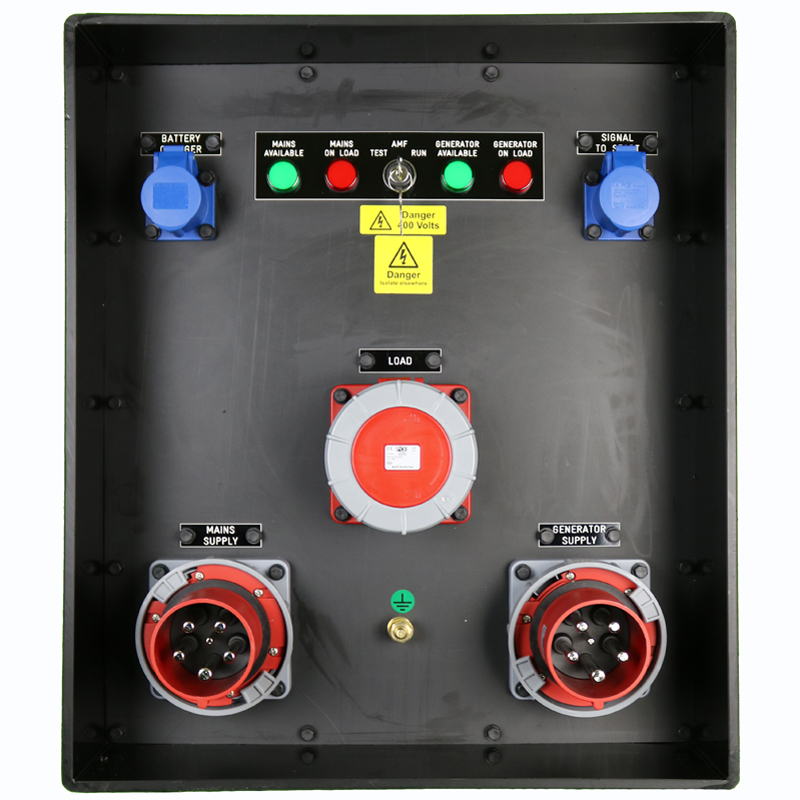

Event Distribution Auto Mains Failure panel ( AMF ) 63A AMF (Plug & Play)

These units can be built to your individual specification, please call or email us with your requirements


Manufactured from 10mm 300-grade medium density black polypropylene sheet and of a fully
welded construction. Sockets / Switchgear access windows and handles are all recessed to
afford mechanical protection. All fixings are stainless steel.

Height: 460mm Width: 530mm Depth:470mm


This unit


• 1 No Pair of mechanically & electrically interlocked 63A AC1 rated contactors.
• 1 No Set of electrical controls for Automatic Transfer & Mains Reinstatement.
• 1 No 16A 1P+N+E 230v socket outlet (Battery Charging).
• 1 No 16A 1P+N+E 230v socket outlet (2 wire Signal to Start, connected to L & N Pins).
• 1 No Set of indication lamps & Test key switch facility
• Note: Labels to be as follows “PRIME GENERATOR” – “STANDBY GENERATOR” – “LOAD”

• Additional information:
• 1) Available up to 3200A.
• 2) Variety of enclosures to suit all types of application.
• 3) Suitable for indoor and outdoor use.



AMF panel is the short form of Auto Mains Failure panel. It is sometimes also called an Automatic Transfer Switch. It is normally connected to the generator set to control the generator set function automatically detecting a power cut and causing the generator to start and support the load. It can call the generator set if it detects that the mains power is lost (power cut) or out of preset tolerances (e.g. brownout). When the AMF panel detects that the mains has failed or is outside of tolerance, it will send a start signal to the generator to startup. Once the generator is ready to accept the load, the motorised switches or contactors in the AMF panel will switch the building load from mains supply to generator. When the mains is restored, the opposite will happen. The AMF panel will put the building load back on to the mains supply and then stop the generator (once it has performed its cool down process).
