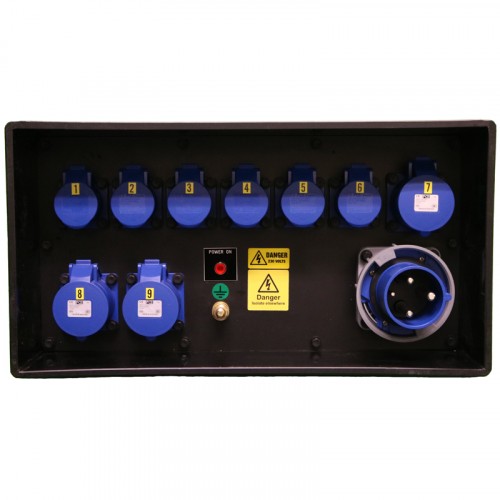

Event Power Distro Box 63A 1pH+N+E 230V 3 x 32 + 6 x 16A 1pH+N+E MCB + RCBO's

Portable Mains Event Power Distribution Unit 63A 2P+E 230V Panel Mount Inlet MCB

Primarily designed and manufactured for use within the events industry our range of portable event power distribution units provide all of the essential requirements for a successful installation.

• Easy to install.
• Reliable in operation.
• Suitable for indoor or outdoor use.
• All switchgear is protected by hinged polycarbonate windows to allow access for operation and inspection of protection devices.
• Sockets, switchgear & handles are all recessed to afford mechanical protection during transportation.
• Integrated handles for easy transportation.
• Integrated feet to facilitate stacking.

These distribution units are manufactured here in the UK and are tested to ensure compliance with BS7671. All are issued with full test certification (12 month warranty).



These units can be built to your individual specification, please call or email us with your requirements

Manufactured from 300-grade medium density black polypropylene sheet and of a fully
welded construction. Sockets / Switchgear access windows and handles are all recessed to
afford mechanical protection. All fixings are stainless steel.

This unit


Incoming Circuit:
63A 1P+N+E 230V IP67 Panel Inlet
PROTECTION: 63A 2P Type C MCB
Phase present indication neons

Outgoing Circuits:
6 x 16A 1P+N+E 230V IP44 Sockets
PROTECTION:6 x 16A 2P 30mA RCBO
Outgoing Circuits:
3 x 32A 1P+N+E 230V IP44 Sockets
PROTECTION:3 x 32A 2P 30mA RCBO
