PowerBOX 32A 3pH+N+E 400V To 9 x PowerCON True 1 + RCBO's + Metering

PowerBOX 32A 3pH+N+PE 400V

Incoming:
1 CEE-17 32A 3pH+N+E  6h 400V IP67 Black PCE Appliance Inlet
Incoming Protection:
1 MCB 32A 4p-C 6.000A
Outgoing:
9 x PowerCON TRUE1 16A 3p 230V IP65 black appliance outlet (NAC3FPX-TOP) with sealing cover (SCNAC-FPX)
Outgoing Protection:
9 x RCBO 10A 1pN-C 6.000A 0,03A Type A
Installed Accessories:
1 fuse switch 3pN 10,3x38mm (F1) + 1 three-phase red LED (IN), 1 fuse switch 3pN 10,3x38mm (F2) +
1 x  LCD multimeter
9 x Green LEDs (OUT)
1 x  Earth stud
Technical Data:
IEC 61439-1 & 2 / PSC, Ue: 400V 3pH+N+PE, fn: 50Hz, InA: 32A, Icc: 6.000A, RDF: 100/100; IP: 54, Electrical insulation class: I (first).
Note:

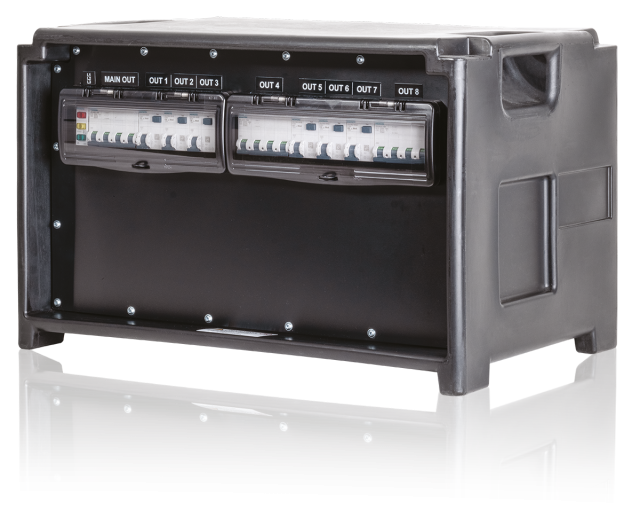

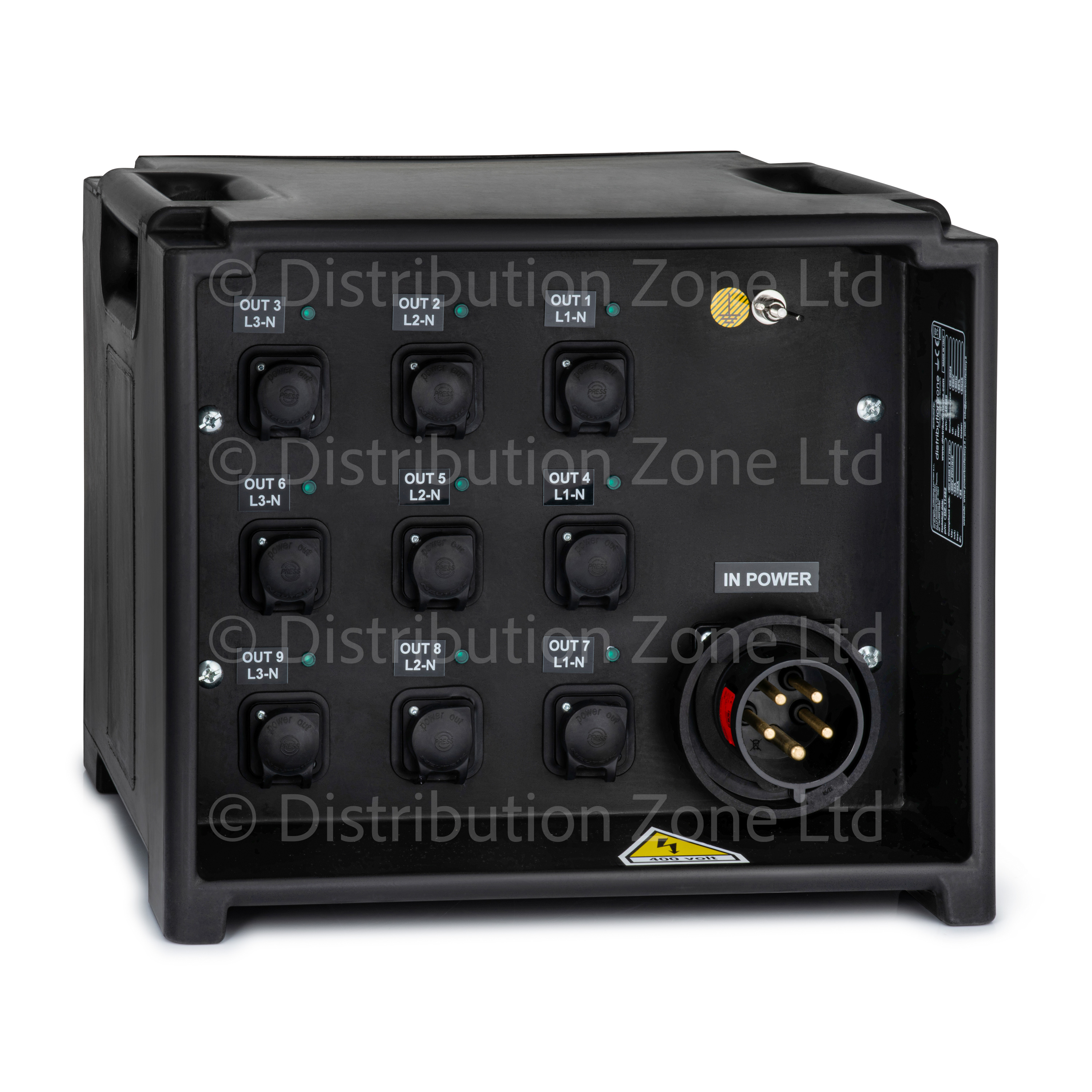

Appliance inlet, OUT connectors with green LEDs installed on the rear. Switches and instrumentation installed on the front

Made in Italy

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

Available in many different configurations, built to your individual specifications. Call us to build yours.
