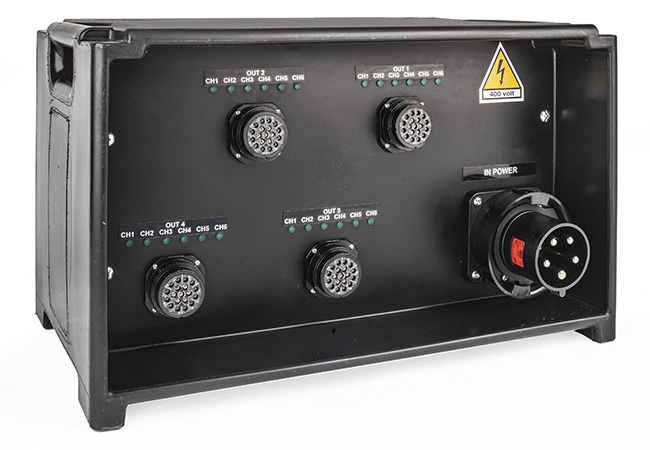

PowerBOX 63Amp 3pH+N+E 400V “CUBe4” 4 x Socapex 19Pin Panel Sockets RCBO

PowerBOX 63Amp 3pH+N+E 400V “CUBe4” series with 4 x Socapex 19Pin Panel Sockets & 24 x RCBO 16A 1pN-C 6.000A Idn=30mA Type A



Made of special insulating material mixes (respondent GLOW WIRE TEST), we have reduced the weight by 50% and eliminated the risk of rupture of the installed components, making it so light that you'll forget old rubber panels. Stackable and transportable.

Power distribution box, ideal for the stage and events environment, supplied with PCE Midnight Series (Black) plugs and sockets with MCB Type C on the incoming & RCBO breakers on each outgoing socket.

Made in Italy.

PowerBOX 63A 3pH+N+PE 400V CUBE4

Incoming : 1 CEE-P17 63A 5p 6h 400V IP67 black appliance inlet.
Main OUT : 1 MCB 63A 4p-C 6.000/10.000A.
Outgoing : 4 x SYNTAX SSX 19-pin (SOCA) IP67 female panel connector with IP65 cap
Protection: 24 x RCBO 16A 1pN-C 6.000A Idn=30mA Type A

Installed accessories : 1 fuse switch 3pN 10,3x38mm +
1 set incoming leds, 24 green leds (OUT),
1 earth stud.
Technical data : IEC 61439-1 & 2 / PSC, Ue : 400V 3pH+N+PE, fn : 50Hz, InA : 63A, Icc : 6.000A, RDF : 49/100, IP : 54,
Electrical insulation class : I (first).
Dims: (H340 x W560 x D350mm)



CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market


Available in many different configurations, built to your individual specifications. Call us to build yours.
