PowerCON Male 3 Pole 32 Amp NAC3MP-HC (Neutrik )
Our No: 4693
Manufacturer No: NAC3MP-HC
| Units | % | Price per unit |
|---|---|---|
| 4 | 5% | £11.39 |
£11.99
£14.39 (inc VAT)

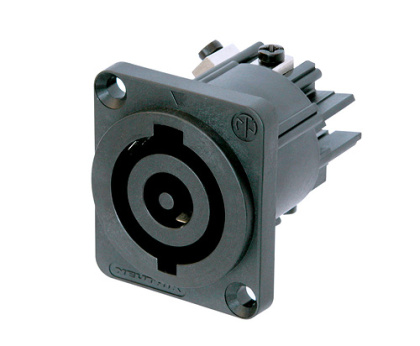

powerCON 32 A chassis connector, power-in
The 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V.
Features & Benefits
- 250 V ac, 32 A single-phase (for ambient temperatures up to 35°C)
- Premating contact for protective earth
- Fast and easy locking system to prevent unintentional disengagement
- Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 - 10)
- Extremely robust and reliable
- VDE, UL, cUL and JET approved
Specifications
- Cable O.D. Range: 8 - 20 mm
- Dielectric strength: 4000 V dc
- Locking device: quick Lock
- Mounting direction: front and rear
- Packing information: Box quantity = 40
- Priced per connector: available in any quantity
- Rated current per contact: 32 A (30A for cUL)
- Rated voltage: 250 V ac
- Wire size: 2.5 - 6mm:
- Wiring: screw type terminals
- Wiring with screw-type terminals for wires 2.5 to 6.0 mm:(AWG 14 - 10)
