PowerSyntax Bimetal Powerlock Connector Line Source L3 Grey 750A

• PowerSyntax Bimatel Powerlock Connector Line Source L3 Grey 750A
• Bimatel Comprised of Aluminium and Copper
• 240mm2 EasiLug Crimp Terminal For Aluminium Cable
• Crimping Bucket Inner Diameter 21.3mm
• 32-38mm Clamping Range M50 With M40-M50 Adapter

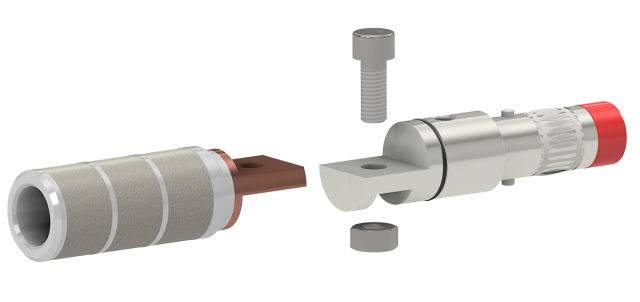

SPY EasiLug is a quick, safe and easy means to fit lug terminal single core aluminium cables into a classical PowerSyntax single pole connector. It combines the reliability of a lug termination cable with the convenience of a PowerSyntax connector. The result is an IP67 waterproof terminal block, which also enables to disconnect the line without need of any tools (this operation must be carried out in absence of voltage).

The bimetallic contacts are obtained by friction welding of aluminium and copper as raw materials. The crimp terminals are made of aluminium to allow corrosion-free termination on to aluminium cables.
