Powersafe Powerlock Full Set of 5 x 500A Line Drain Set Screw 120mm2 M40A

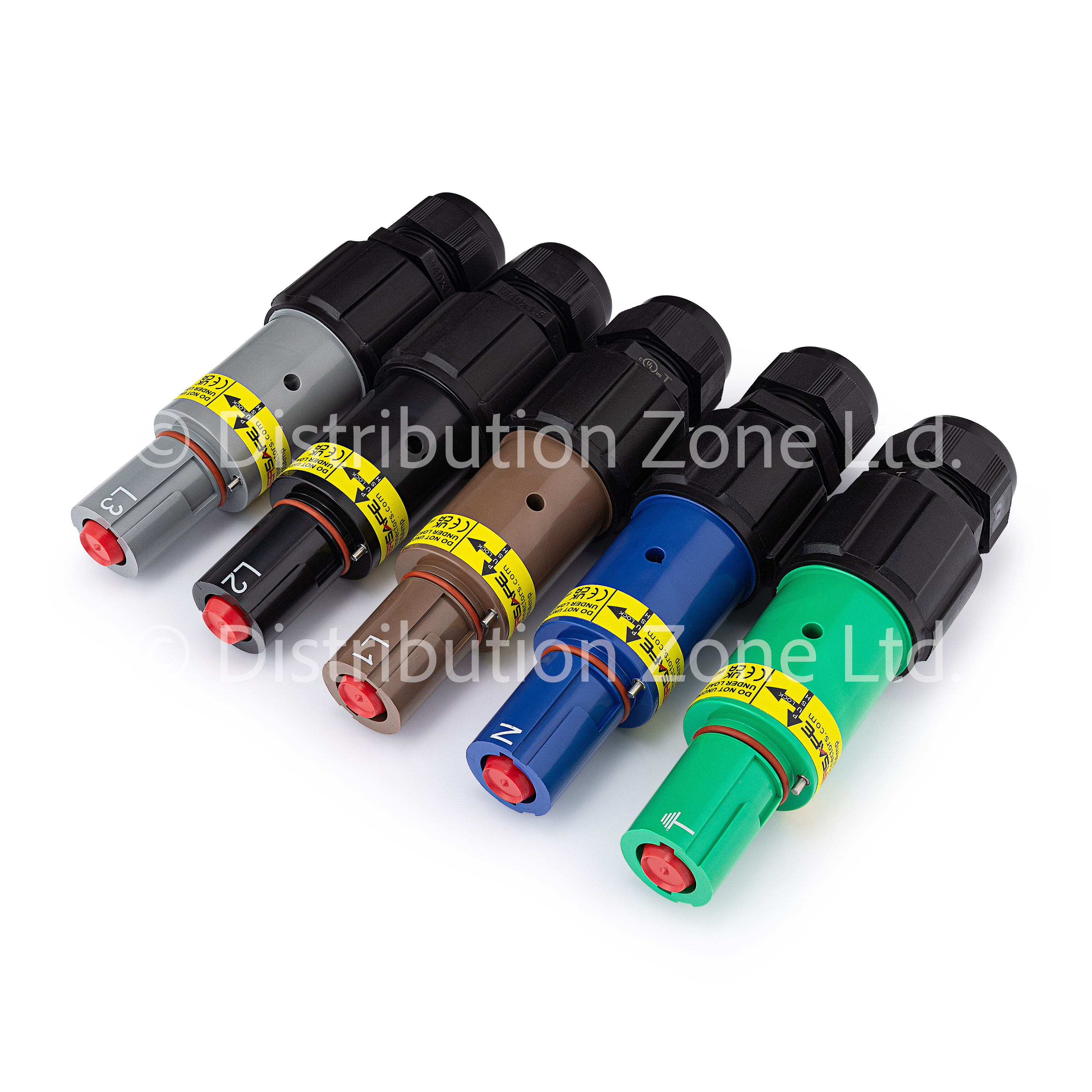

Full set of 5 x 500A Drain 120mm2 M40A Connectors, includes Earth Green, Neutral Blue, L1 Brown, L2 Black and L3 Grey. These connectors are designed to be used with 120mm2 cable and terminate using a set screw contact. However, unlike other Powerlocks in the range, they can also accept most types of 150mm2 H07RN-F as well.

For applications that require cable smaller than 120mm2 cable, the set screw product allows you to add reducer kits into the connector to terminate to cable sized from 95mm² to 25mm². These must be purchased separately and are available  here.

About The Connectors
All Powersafe’s heavy duty industrial plugs are designed, assembled and manufactured in the UK with materials sourced from Europe and America. The conductive metals are always 99.9% pure materials and deliver the highest quality in the industry. All suppliers are ISO accredited businesses and products are UL, VDE and CE certified. Powersafe Powerlock connector sets come with a hand grip as standard to assure protection of the insulator and improve usability.

All source and drain connectors are fully compatible with Litton VEAM, T4 400 amp and T6 660 amp powerlock, ITT Cannon and other manufacturers.

Safety & Performance Features
•    Mechanically keyed to eliminate the possibility of cross mating
•    Secondary locking to prevent unintentional uncoupling under load
•    Finger-proof protection against electric shock IP2X
•    Waterproof & Dustproof to IP67 rated
•    Colour coded for easy identification
•    Innovative contact band allows higher rating (400A > 500A, 660A > 800A)
•    Contact band cannot come out
•    High impact insulator (no glass used & flame retardant)
•    Field installation no special tools required
•    Integral cable strain relief
•    Daisy chain capability facilitates flexible stock cable lengths
•    Large cable range 25mm² – 300mm²
