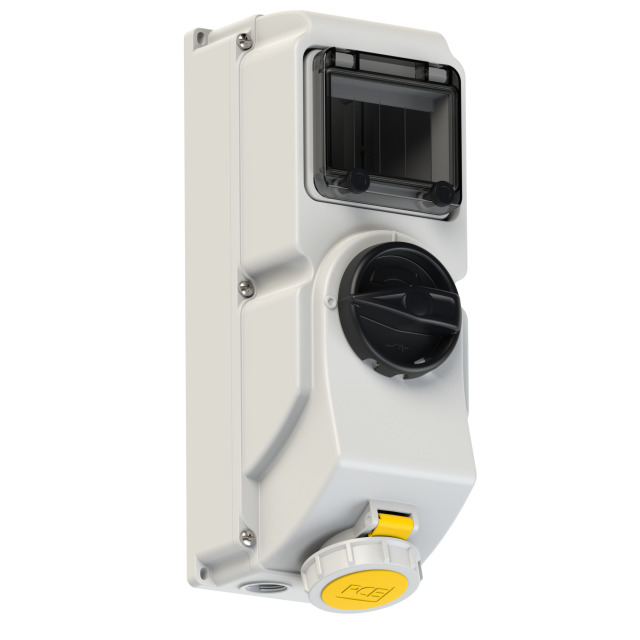

PCE Switched Interlocked Socket 16A 2P+E 110V IP67 76132-4
Our No: 8892
Manufacturer No: 76132-4
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £70.38 |
| 5 | 10% | £66.67 |
£74.08
£88.90 (inc VAT)
CEE-switched interlocked socket DIN 16A 3p 4h IP66/IP67
CEE-switched interlocked socket DIN 16A 3p 4h IP66/IP67
housing material: PC/ABS
rated current: 16A
number of poles: 3 (2P+PE)
clock-position: 4h
rated voltage/frequency: 100-130V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
wall mounting, mechanical interlock, hinged window (5 modules), DIN-rail
switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP66/IP67
